Industrial Lighting
Model:
Skylight Series / Spot light Series
Applications:

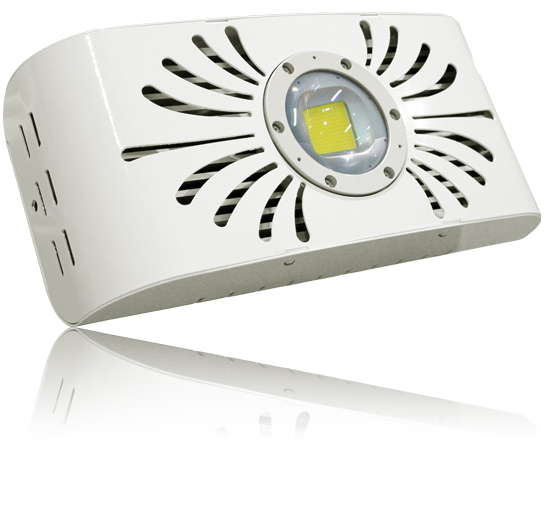

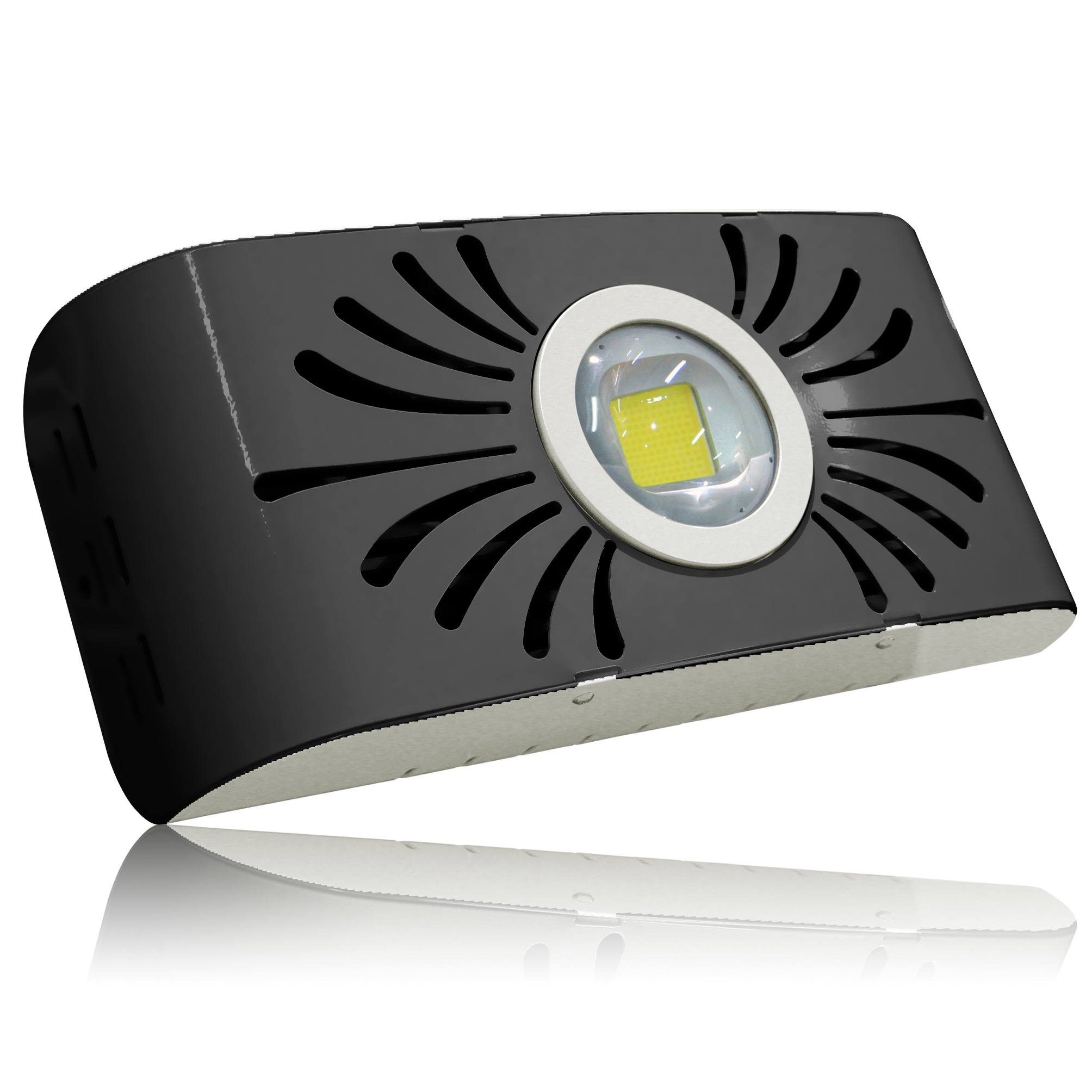

Warehouse, Industial Factory, Gymnasia, Banner & CommunitySkylight Series (Die-Casting Aluminium, Silver Coating, Natural Cooling System)
LED Skylight Series reduces the CO2 emission amount and saves upto 50% of energy consumption in comparison to normal Mercury lights. High-bay luminaire LED offers clear vilibility in long term usage and great versatility in applications, including warehouses, industrial, gymnasia, and other high-ceiling indoor facilities.
Efficiency(W) ： 60~200
Color(K) ： 2800~5700
Optical Lens ： 15∘31∘56∘95∘132∘180∘5mm
Made in Taiwan
 |
 |

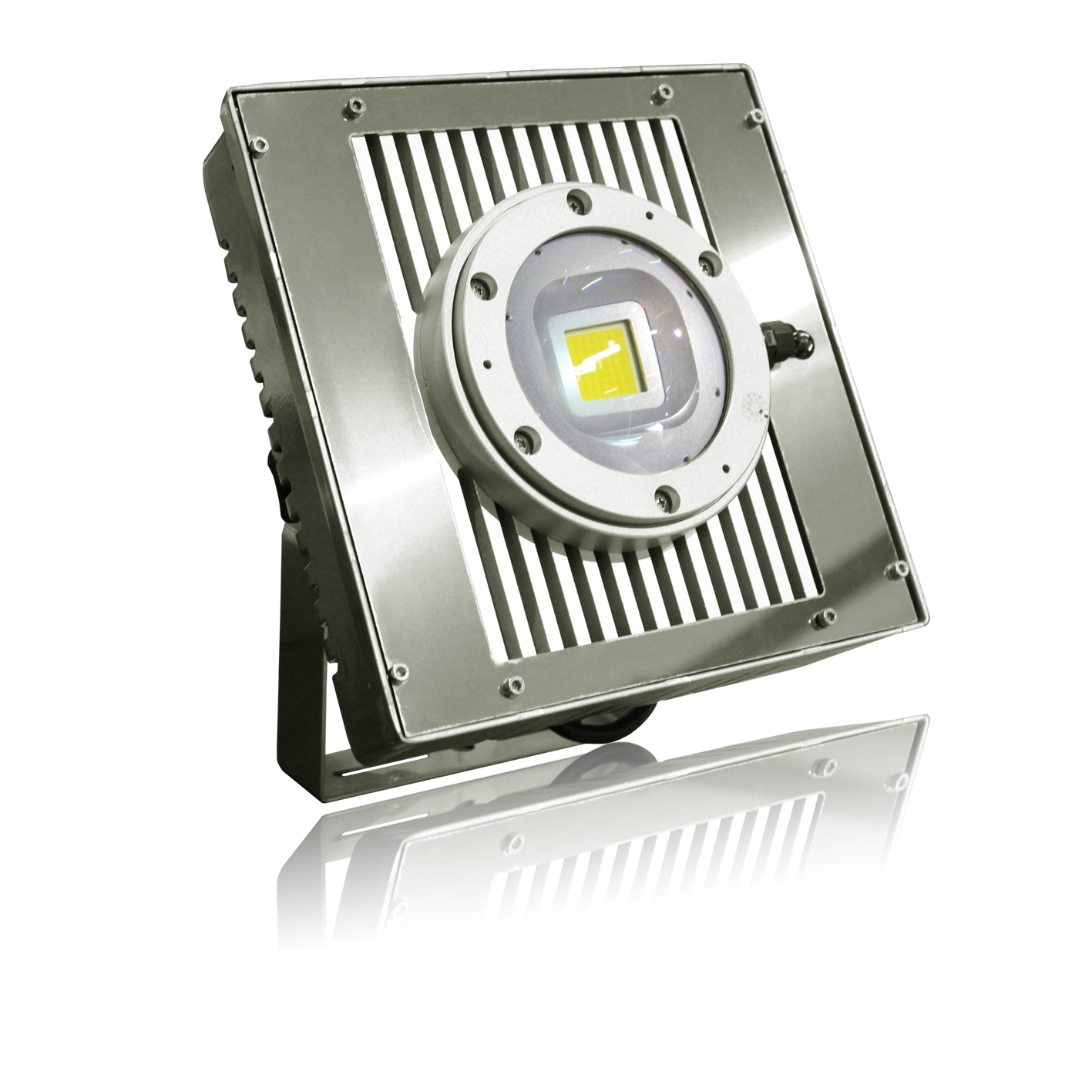

Spot Light Series (Die-Casting Aluminium, Aluminium Cover, Anti-UV Coating)
Intergrating LED sources into urban development provides lighing solution in the dark.
Efficiency(W) ： 40~200
Color(K) ： 2800~5700
Optical Lens ： 15∘31∘56∘95∘132∘180∘5mm
Made in Taiwan
 |
 |
Replacement Optical Lens
Several project angle of optical lens can be choosed for usage in different environments.
Condensation Lens(56°)、Diffusion Lens(95°)、Street light Lens(132°)、Expansion Lens(180°)

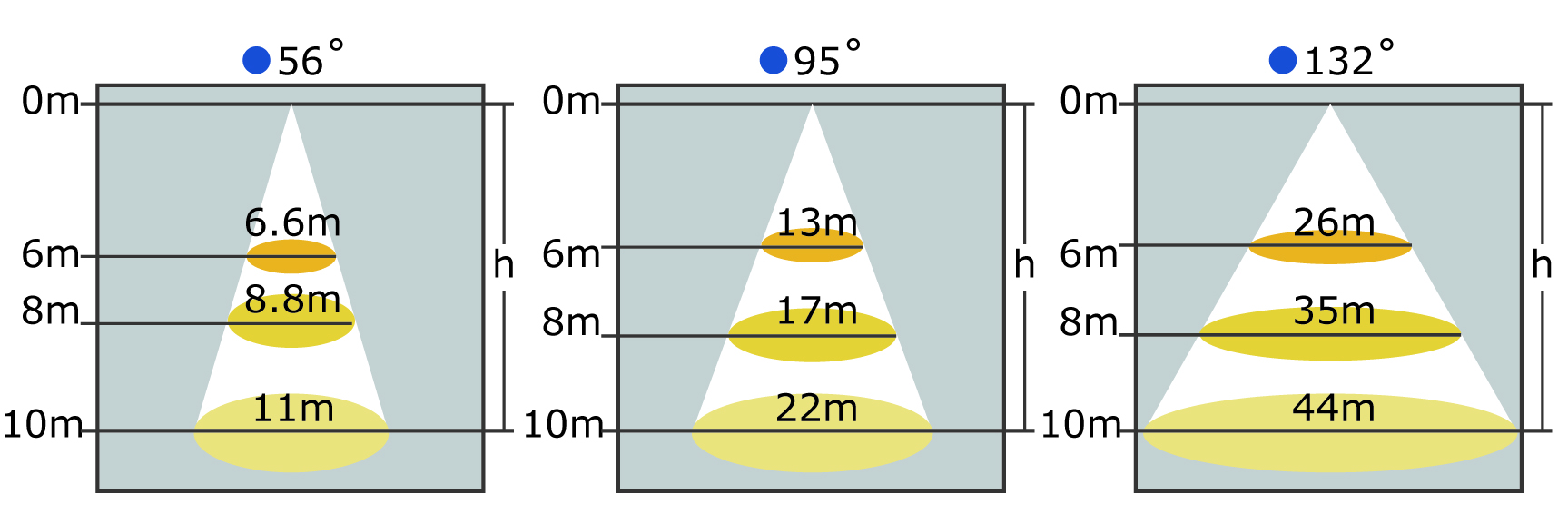

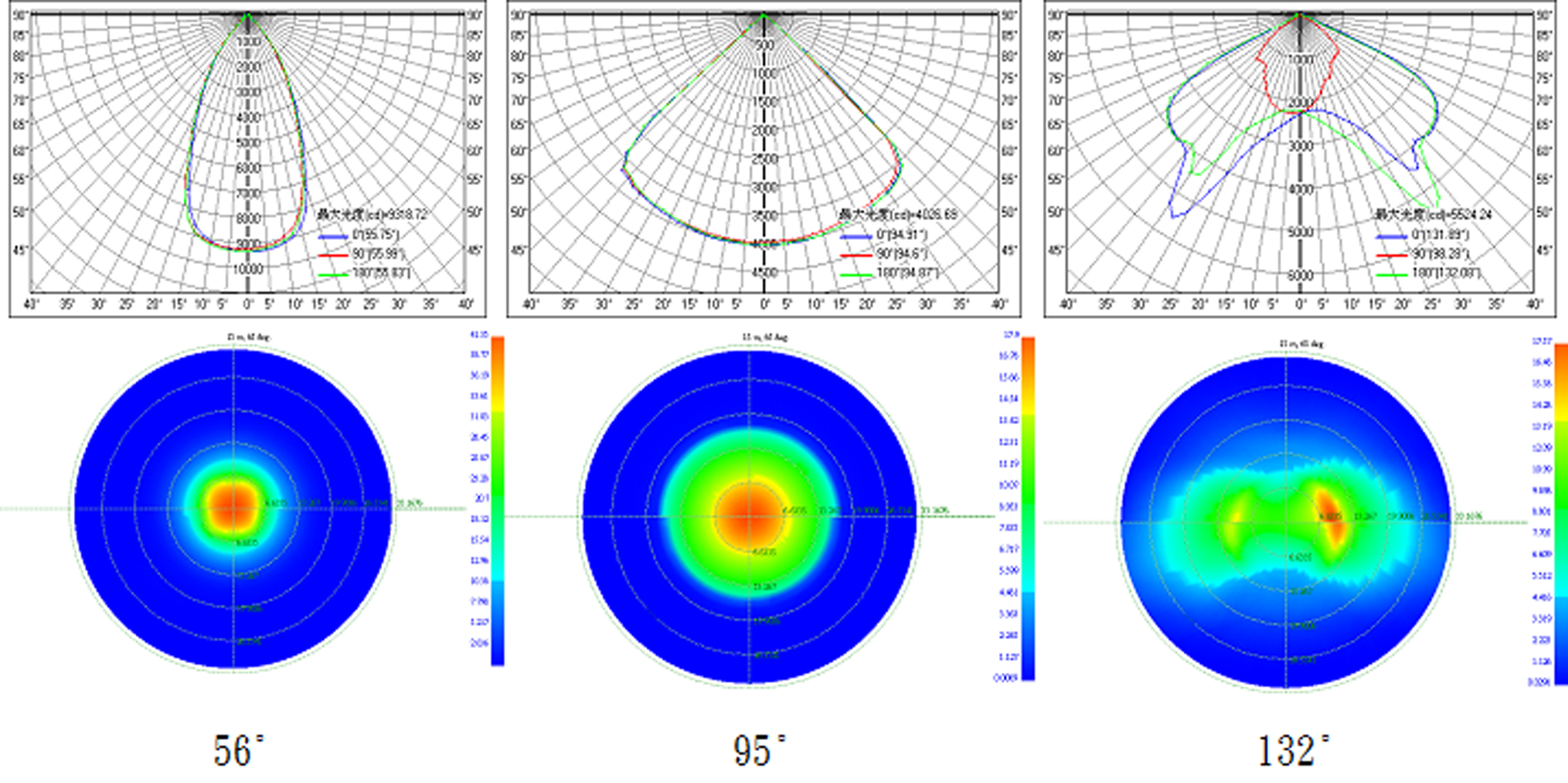

Luminous Flux & Distribution Chart (Based on 100W Lighting Source)
 |
||
|
Hight (m) Center Luminous Flux (Lux) |
Hight (m) Center Luminous Flux (Lux) 6 173 8 97 10 62 |
Hight (m) Center Luminous Flux (Lux) 6 116 8 65 10 42 |
